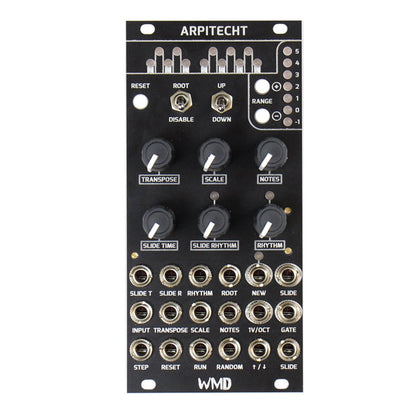

Arpitecht
Voltage controlled quantizer and rhythmic arpeggio generator designed for modular musicians. Create intricate melodies spanning 8 octaves, acid basslines, and evolving generative sequences. Features 16 scales with customizable note masks, 32 rhythm patterns, and 32 slide patterns—all with CV control. Transform static clocks into unique, evolving gate patterns and note changes. Optional Triad expander enables polyphonic chord generation in the same key as your arpeggios for complete harmonic control.
Pairs well with
Product Details
Voltage Controlled Melodic Inspiration
Simply put, Arpitecht is a voltage controlled Quantizer and rhythmic arpeggio generator. As one of our most musical modules to date, Arpitecht is designed to be an inspiring tool for the modular musician.
With Arpitecht, you can create intricate melodies that span 8 octaves, imply chord changes, instant acid basslines, evolving generative sequences, and, using the Triad expander, polyphonic chord generation.
Arpitecht features 16 scales, each with a unique set of "note masks" offering hundreds of note combinations with the ability to dial in via knobs on the front panel or CV. 32 rhythm patterns and 32 slide patterns all with CV control let you feed a static clock into it and get unique, evolving patterns of gates and note changes.
Triad expander module allows you to create uniquely voiced chords in the same key underneath your arpeggios.
Specifications
- Width12HP
- Power+12V = 70mA; -12V = 35mA
- Depth30mm
- Firmware upgradeable via USB
Features
-
Voltage controlled Quantizer and Arpeggio Generator.
-
16 scales
-
Hundreds of note combinations possible
-
Inspiring to creativity and easy to "land" somewhere new
-
5 octave range arpeggiation range
-
+-1 octave transpose range
-
Intuitive front panel and "keyboard" LED layout
-
Rhythm and Slide Rhythm options for added variety to your arpeggio
